Sanitary Shell and Tube Heat Exchangers
Heating and Cooling for Continuous and Semi-Continuous Hygienic Processes
Valutech offers a complete range of stainless-steel sanitary shell and tube heat exchangers for processes with stringent hygienic regulations in the food, beverage, personal care, pharmaceutical, cannabis, and dairy industries.
Our partner Enerquip has a wealth of experience in the manufacturing and servicing of shell and tube heat exchangers. Their units are also optimized for Cleaning-in-Place operations; Enerquip units comply with 3-A regulations for construction and cleanability, containing FDA-approved elastomers, seamless tubing, and high weld quality. Custom solutions are also available to provide configurations of certain sizes or using certain special alloys.
![Sanitary Shell and Tube1 Sanitary Shell and Tube Heat Exchangers | Valutech Inc](https://www.valutechinc.com/wp-content/uploads/2021/12/Sanitary-Shell-and-Tube1.jpg)
Sanitary Shell and Tube Heat Exchangers
Find the style and model that is right for your hygienic process below:
Enerquip sanitary shell and tube heat exchangers feature alloyed construction to ensure corrosion resistance and cleanliness of hygienic processes. They are built to comply with North American standards (ASME hydro-tested, TEMA C and CRN guidelines), and have no dead legs. Enerquip units are also fully drainable on the product side, and feature sanitary tri-clamp connections on the process side that allow for simple installation.
The following sanitary shell and tube heat exchanger features are available:
Sanitary Shell and Tube Features |
||||
---|---|---|---|---|
TEMA Variety | BEU, BEM, BEW (Other TEMA Varieties also available upon request) |
|||
Alloys | 316SS, 316LSS, Duplex, Hastelloy, AL6XN (More available upon request) |
|||
Connection Types | Sanitary Tri-Clamp (Standard), NPT Threaded, ANSI Flanged | |||
Diameter Range | 4″ to 20″ | |||
Finishes | Sanitary Food-Grade, 3-A 32 Ra, Pharma-Grade | |||
Standards | ASME, CRN, BPE, GPM, 3-A |
The following options are also available for every Enerquip sanitary shell and tube model:
- Baffles
- Double Tube-Sheet Design
- Floating Tube-Sheets
- Multi-Pass Tube-Sheets and Bonnets
- Passivation
- Electro-Polishing
- Insulation and Cladding* with a Stainless-Steel Jacket
*Asbestos and Chloride-free - Mounting Saddle Supports:
- Horizontal Clamp-on Saddles
- Vertical Welded Lugs
- Davit Arms

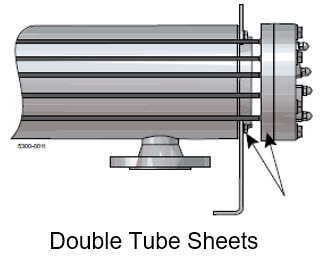

About Double Tube Sheet Designs
Double tube sheet designs are utilized in sanitary shell and tube heat exchangers in order to minimize the risk of cross-contamination between product and heating/cooling media. With these designs, the service medium is sealed within the shell by one tube sheet, while the other tube sheet seals the product; this allows for simple visual detection in a leakage event.
